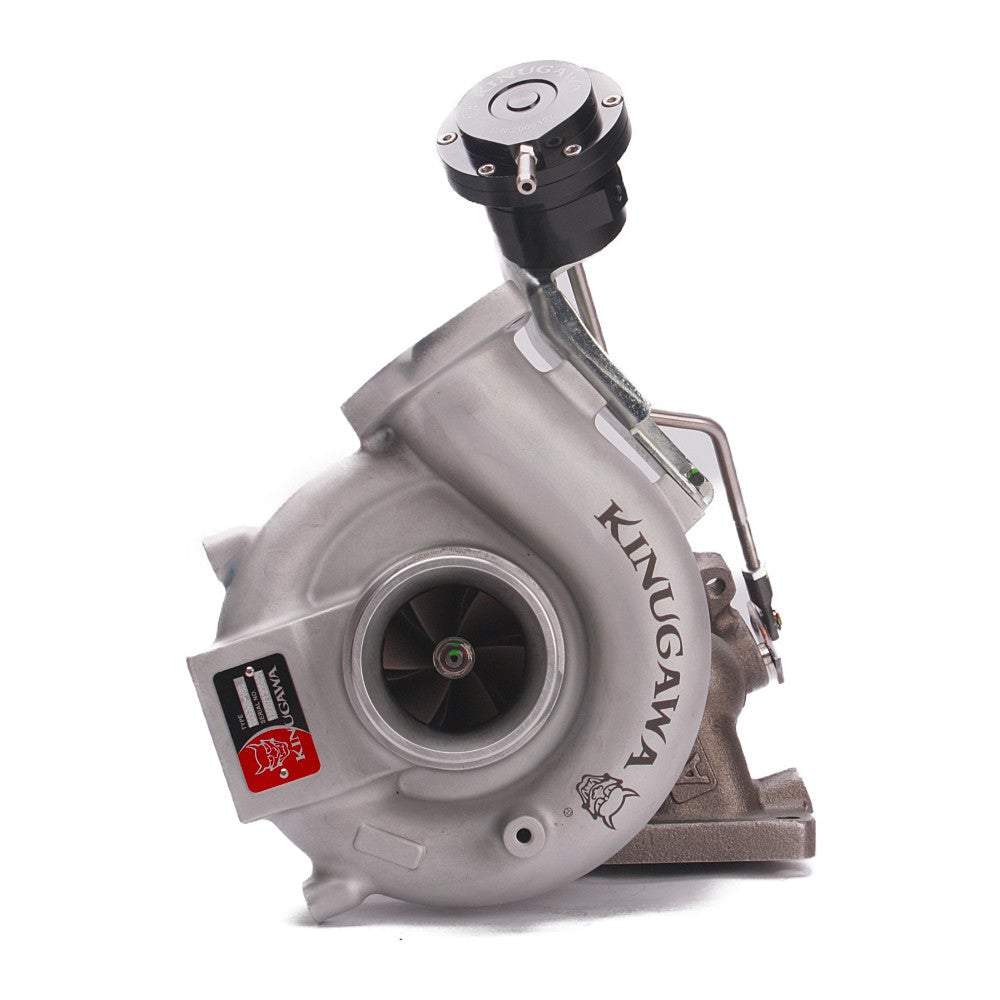

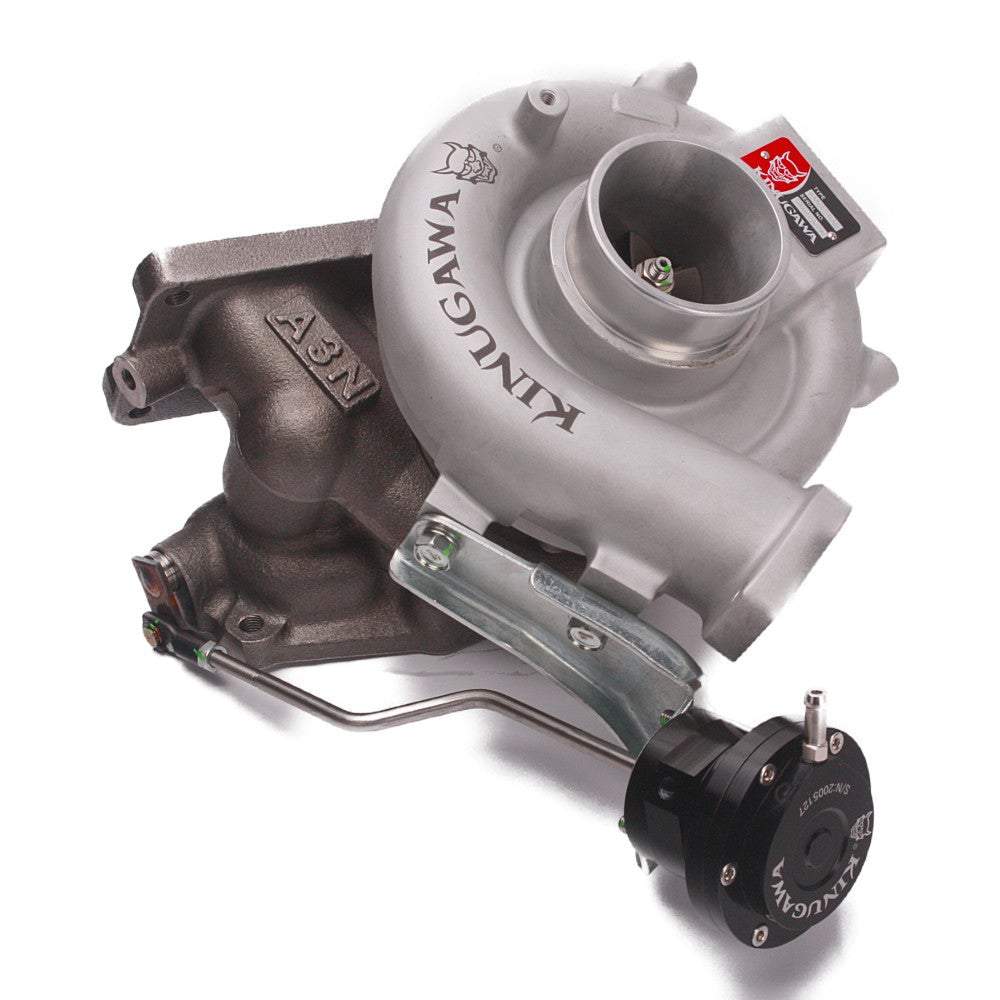

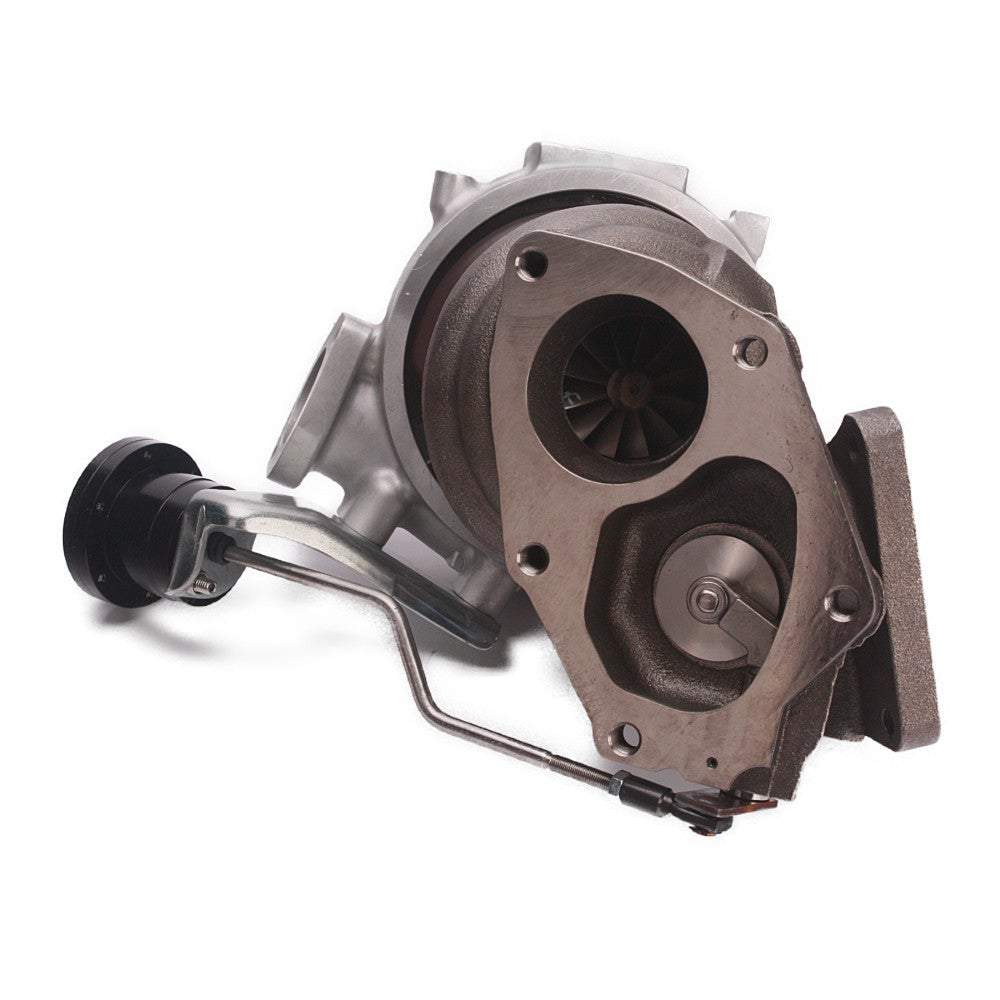

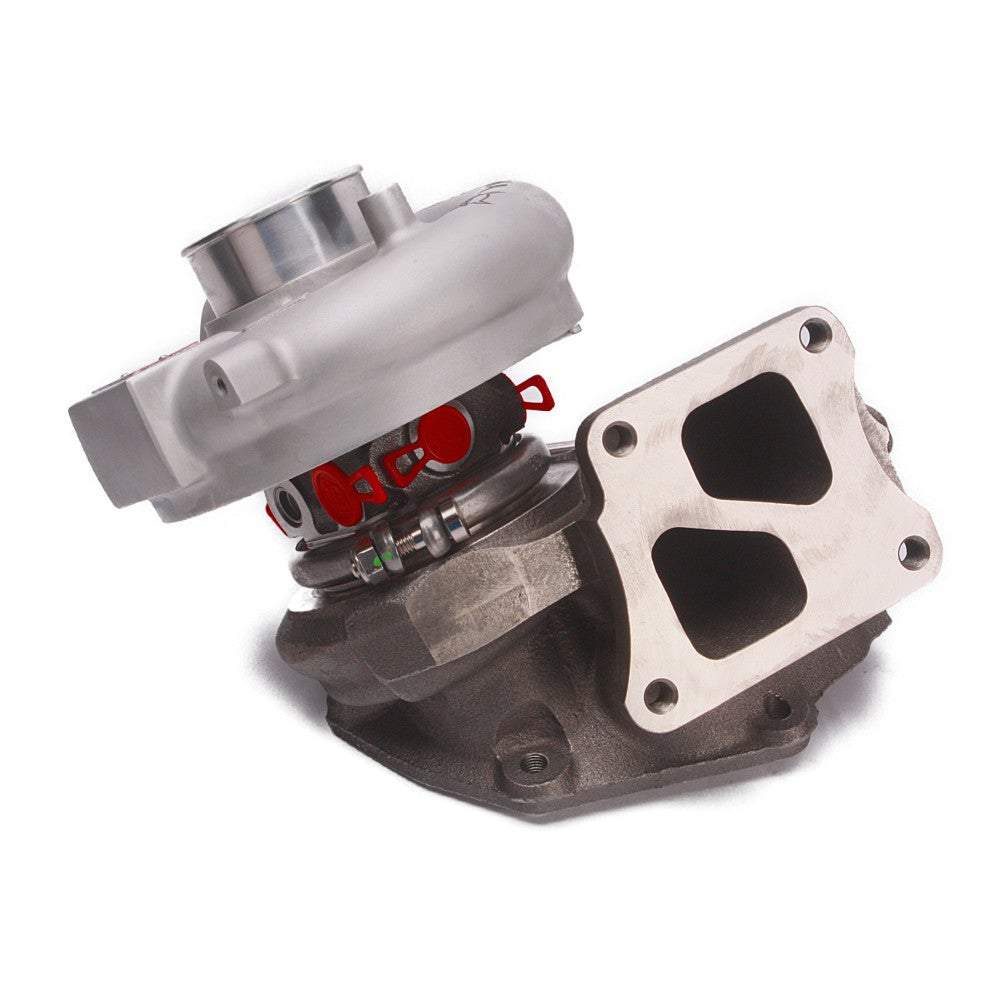

Kinugawa STS Advanced Ball Bearing Non Anti-Surge Turbocharger TD06HR-25G 10.5T for Mitsubishi Lancer EVO 9 IX 4G63T RS SE MR Fit EVO 4~8 Drop-In

1.479,00

Auswahl zurücksetzen
Artikelnummer: n. v. Kategorie: Schlagwörter: , ,

Beschreibung

Application
– For Mitsubishi 4G63T EVO 9 / EVO IX / EVO 4 ~ 9 for 550WHP
– EVO 4-8 Install Kit included.
CHRA Size
TD06HR-25G
Wheels Spec
– Compressor wheel: 60.5 / 78 mm (In./Ex. Diameter)  (The 6+6 blade type better for low-end torque and the 11+0 is for top-end speed)
– Turbine wheel: 58.8 / 67.2 mm (Ex./In. Diameter)
Compressor Housing
2.5″ inlet / stock 2 bolts flange outlet
Turbines Housing
10.5 cm ^ 2  Twin-Scroll
Bearing Type
– Dual Ceramic Ball Bearing
Cooling systems
Oil and water cooling
Actuator Pressure
– 1.0 bar / 17.6 psi default .
– 0.5bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar and 2.0 bar, Please add a comment about your order if you need to change it.
Situation
Brand New
Provider
Kinugawa Turbo Systems
Guarantee
One year

Kinugawa STS Turbin Wheel
Kinugawa Turbo Systems STS Advanced Fast SpoolKinugawa Turbo Systems STS Advanced Ball Bearing

Kinugawa Turbo Systems SCHENK Balancer
Kinugawa Turbo Systems Anti-Counterfeit Tag

Zusätzliche Informationen

Gewicht 12 kg
Compressor Wheel

Billet 6+6, Billet 11+0

Turbine Wheel

9 Blades STS
